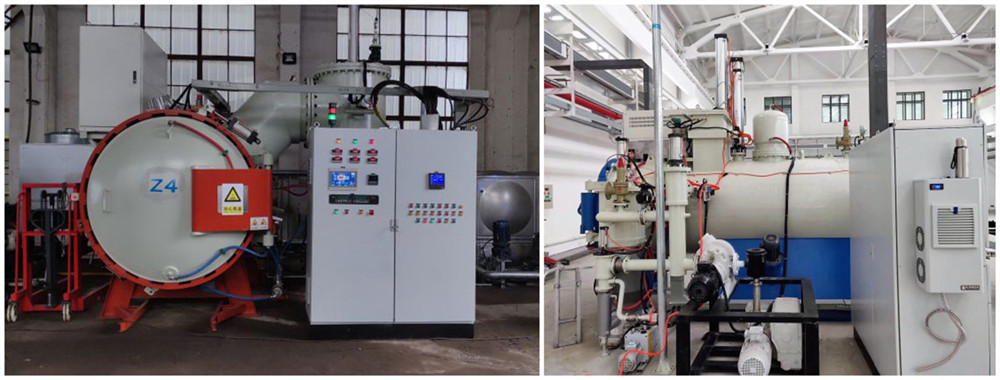

Vacuum High Pressure Gas Quenching Furnace
VACUUM FURNACES - GAS QUENCHING    View:198    Date:2019/06/20

Product Description

Vacuum High Pressure Gas Quenching Furnace, is widely applied for the quenching of low, middle and high alloy steels. The system is able to completely replace the other quenching systems which worked in the air or protective atmosphere. The parts have the bright surface and reliable quality. Customers can select  graphite  heaters or metal heaters in accordance with the pratical conditions of your enterprises, or selecty 6 bar or 10 bar cooling pressure in accordance with the properties of materials to be treated.


Features

Heating Chamber

1300℃ by Graphite or Molybdenum heating element

Equipped with high quality Graphite, with homocentric design, to ensure the uniformity of temperature heating

The insulating layer is stainless steel outer-frame, heat screen is of soft carbon felt, to ensure the performance of heat insulation

Vacuum System

With vacuum level is 10-3 Pa level demanding
Operate with Mechanical Pump,Roots Pump & Diffusion Pump, Three-level vacuum system

Under no-load/ dry degassing, it takes no more than 50 minutes to reach demand vacuum

Control System

Easy operation, can be operated by Single Person
The whole operation can be recorded automatically


Technical Data

Model

Size

(mm)

Installed Capacity

(Kg)

Heating Power

(Kw)

Temperature

Uniformity

)

Pressure

Rise Rate

(Pa/ h)

Gas

Pressure

(Bar)

VTG-335

300×300×500

100

80

5

0.5

6/ 10

VTG-446

400×400×600

200

100

VTG-557

500×500×700

300

120

VTG-669

600×600×900

500

150

VTG-8812

800×800×1200

1000

240

※Other dimensions are available


Henan Synthe has the ability to offer the design and produce according to your specific demand, please contact us if you are looking for customized heat treatment solutions for your company.
