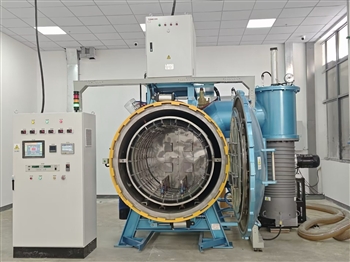

Aluminum brazing furnace
1.Outside circulation cooling mode is adopted, and heating is separated from cooling.
2.All-metal panel is adopted for thermal insulation to guarantee the high degree of vacuum required for workpieces during brazing.
3.Multizone temperature control is employed for heating to guarantee perfect temperature uniformity in temperature zone.
Contact us
Specification
Size(mm):
300x300x500/400x400x600/500x500x700
600x600x900/800x800x1200/1500x1500x3500
Installed capacity(kg):100-1800
Max Temperature(℃): 800
Temperature uniformity(±℃): 3
Ultimate vacuum(Pa): 6×10-4
Type:Horizontal, Vertical and Continuous
Larger size, higher temperature and greater pressure alumium brazing furnace can be customized.
