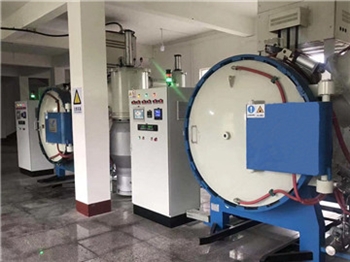

Annealing furnace
1.Convenient operation, free manual/automatic conversion, fully automatic control can be realized for complete avoidance of failure in manual operation during work. 2.Perfect alarm system can protect the equipments effectively. 3.some vacuum annealing furnaces, convection heating can be considered to satisfy the needs of high heating speed and good effect of even temperature in tempering process
Contact us
Specification
Size (mm):300x300x450/400x400x600/500x500x700/
600x600x900/800x800x1200/Custom
Installed capacity (kg):100-1000+
Heating material:Ni / Mo
Maximum temperature (℃):950/1300
Temperature uniformity (±℃):5
Ultimate vacuum (Pa):4 ×10-3
Gas pressure (bar):2
For annealing treatment of some tubular, thin and long, thin-wall parts, it is recommended adopting the vertical structure with top or bottom charge, thus the deformation problem can be solved effectively.
