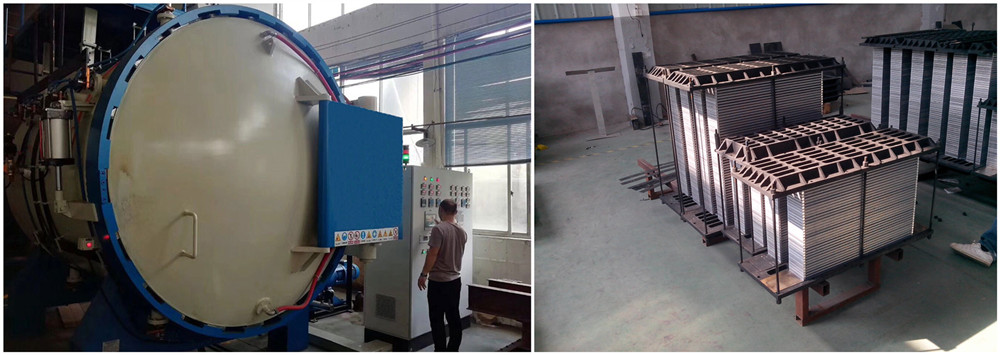

Vacuum Aluminum Brazing Furnace
VACUUM BRAZING FURNACES    View:178    Date:2019/06/20

Product Description

Highlight of vacuum brazing is a high vacuun, high cleanliness, and high-temperature uniformity, the most critical aspect as filler selection mancraft and process parameters. For the heat treatment of some tubular, thin and long, thin-wall pats, it is recommended adopting the vertical structure with top or bottom charge, thus the deformation problem can be solved effectively. Horizontal and vertical structure are provided, and meanwhile various non-standard equipment can be customized.


Features

Furnace Body

Structure of Double-Deck Cylinder, with material Carbon Steel.

Equipped with water cooling system, ensure outer shell safety to touch.

Heating Chamber

750℃ by Nickel-Chromium heating element. Equipped with high quality SS304 for reflecting screen and frame.Heating with different zone And each zone can be controlled separate.With design, to ensure the uniformity of temperature heating. Each heating zone can be disassembled separate also.

Material for Heat Treatmen

Applicable to aluminum plate-fin heat exchangers, automobile radiators, automotive air conditioning evaporators, condensers, radar network antennas and wave-guide tubes, etc.

Vacuum System

With vacuum level is 10-3 Pa level demanding. Operate with Mechanical Pump,Roots Pump & Diffusion Pump, Three-level vacuum system.
Under no-load/ dry degassing, it takes no more than 50 minutes to reach demand vacuum.

Control System
Easy operation, Can be operated by single person;

The whole operation can be recorded automatically.


Technical Data

Model

Size

(mm)

Installed capacity

(Kg)

Heating power

(Kw)

Temperature uniformity

(±°C)

Pressure rise rate

(Pa/h)

VTB-335

300×300×500

100

40



3



0.3

VTB-446

400×400×600

200

60

VTB-557

500×500×700

300

80

VTB-669

600×600×900

500

100

VTB-8812

800×800×1200

1000

160

※Other dimensions are available


Henan Synthe has the ability to offer the design and produce according to your specific demand, please contact us if you are looking for customized heat treatment solutions for your company.
