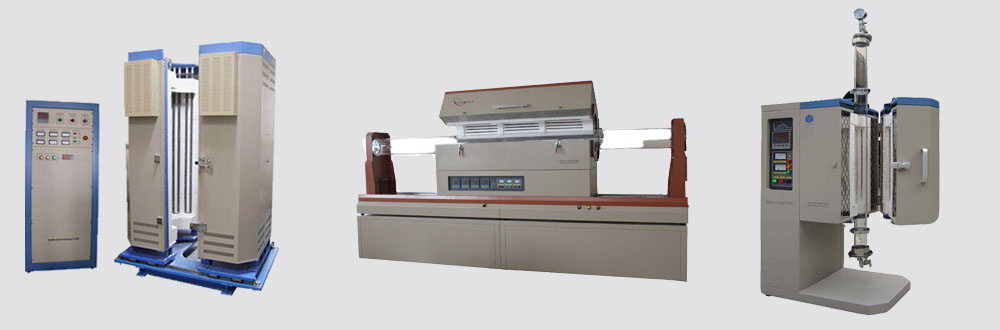

Vacuum Tube Furnace Series
LABORATORY FURNACES    View:587    Date:2019/06/19

Products Description

The tube furnace, is widely used in laboratory sintering and annealing, technical ceramic sintered battery material equipment, sintered phosphor purification, nano material sintering. The equipment is specially developed for large workpieces or large batch heat treatment production. Temperature control, constant temperature, and temperature reduction enable precise control.


Furnace Features & Size Options

Temperature is 1100C~1700C and multi-face heating

220V single Phase

51-segment easy use PID programmable temperature controller

Long-life metallic heating elements

High efficiency ceramic fiber insulation

Heat isolating ceramic tube

Long life K B or S-type thermocouple

High temperature sealing rubber sheet

Stainless steel sealing plate

Worm gear clamp

Set of fasteners

Vacuum and process gas connection nozzle

One-year limited warranty on all electronic parts

Standard Tube Lengths: 1000mm,1200,1500,1650,6000.

Standard Heating Zone Lengths: 300mm, 900mm,1100, 4800mm, 440+440mm.



Henan Synthe has the ability to offer the design and produce according to your specific demand,please contact us if you are looking for customized heat treatment solutions for your company.
