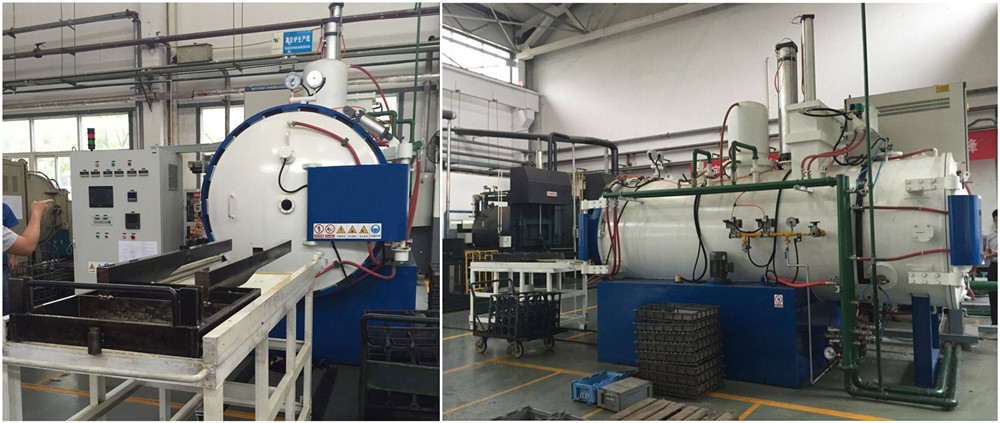

Vacuum Oil/Gas Quenching Furnace
VACUUM FURNACES - OIL QUENCHING    View:271    Date:2019/06/19

Product Description

Vacuum Oil/Gas Quenching Furnace, is widely quenching application for all kinds of low, middle and high alloy steel, can completely replace traditional quenching system working in the air or protective atmosphere. Parts have a bright surface and reliable quality. Featured advantage fast load transfer, quenching in vacuum, oil heat and agitation.


Features

Furnace Body
Structure of Double-Deck Cylinder, with material Carbon Steel.
Equipped with water cooling system, ensure outer shell safety to touch.

Heating Chamber
1300℃ by Graphite heating element.

1300℃ by Molybdenum alloy heating element

Equipped with high quality Graphite, with homocentric design, to ensure the uniformity of temperature heating.
The insulating layer is stainless steel outer-frame, heat screen is of soft carbon felt, to ensure the performance of heat insulation.

Front Door

Cold chamber door connect with the furnace body by hinge connecting, with  staggered-tooth Solve the seal and strength between the door and furnace body.

Heating Chamber

Better than 4x10-1 Pa with rotary pump+roots pump.

Better than 4x10-3 Pa with rotary pump+roots pump+diffusion pump for heating chamber.

Equipped with high quality Graphite, with homocentric design, to ensure the uniformity of temperature heating.

The insulating layer is stainless steel outer-frame, heat screen is of soft carbon felt, to ensure the performance of heat insulation.

Control System

Easy Operation, Can be Operated by Single Person;The whole Operation can be Recorded automatically.


Technical Data

Model

Size

(mm)

Installed Capacity

(Kg)

Heating Power

(Kw)

Temperature

Uniformity

(±℃)

Pressure

Rise Rate

(Pa/h)

Gas

Pressure

(Bar)

VTO-335

300×300×500

100

40





5





0.5





2

VTO-446

400×400×600

200

60

VTO-557

500×500×700

300

80

VTO-669

600×600×900

500

100

VTO-8812

800×800×1200

1000

160

※Other dimensions are available


Henan Synthe has the ability to offer the design and produce according to your specific demand, please contact us if you are looking for customized heat treatment solutions for your company.
