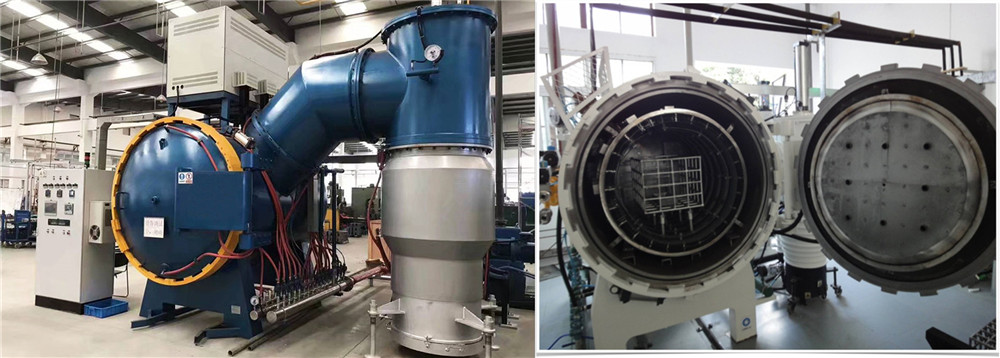

Vacuum Tempering Furnace
VACUUM SINTERING FURNACES    View:219    Date:2019/06/20

Product Description

Vacuum Tempering Furnace, is widely applied for the quenching of low,middle and high alloy steels. The system is able to completely replace the other quenching systems which worked in the air or protective atmosphere. The parts have the bright surface and reliable quality. Customers can select graphite heaters or metal heaters in accordance with the practical conditions of your enterprises, or select 6 bar or 10 bar cooling pressure in accordance with the properties of materials to be treated.


Features

Furnace Body

Structure of Double-Deck Cylinder, with material Carbon Steel.

Equipped with water cooling system, ensure outer shell safety to touch.

Heating Chamber

You can select Nickel-Chromium heaters or Molybdenum heaters in accordance with the annealing temperature necessary for work-pieces. The max temperature of Ni-Cr heaters is 700C, 1100 0C for Mo heaters.

700℃ by Nickel-Chromium heating element.

1100℃ by Molybdenum heating element.

Vacuum System

With vacuum level is 10-1 Pa and 10-3 Pa level demanding.

Operate with Mechanical Pump,Roots Pump & Diffusion Pump, Three-level vacuum system

Under no-load/ dry degassing, it takes no more than 50 minutes to reach demand vacuum.

Control System

Easy Operation, Can be Operated by Single Person;

The whole Operation can be Recorded automatically;


Technical Data

Model

Size

(mm)

Installed capacity

(Kg)

heating power

(Kw)

Temperature

uniformity
(±℃)

Pressure

rise rate

(Pa/h)

Gas cooling

pressure

(Bar)

VTH-335

300×300×500

100

24/60





5







0.5





2

VTH-446

400×400×600

200

40/80

VTH-557

500×500×700

300

50/100

VTH-669

600×600×900

500

60/120

VTH-8812

800×800×1200

1000

120/210

※Other dimensions are available


Henan Synthe has the ability to offer the design and produce according to your specific demand, please contact us if you are looking for customized heat treatment solutions for your company.
