Load Type Crucible Laboratory Furnace
Crucible Furnaces    View:659    date:2016/09/14    Back

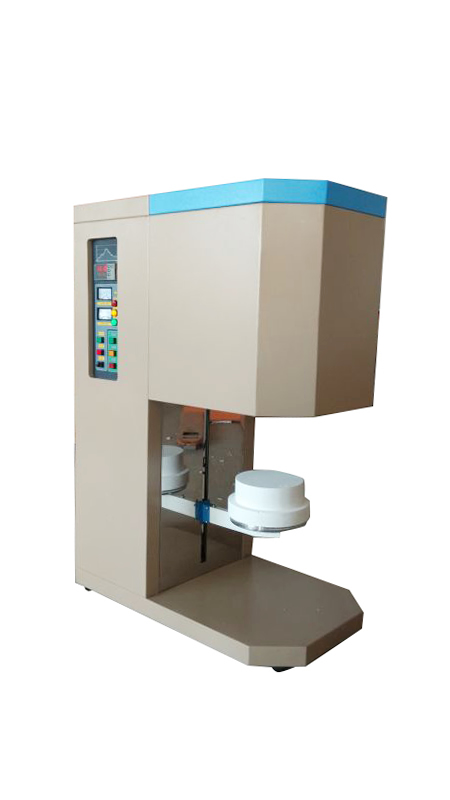

 High Temperature Load Type Crucible Furnace
This furnace has the advanced controller, making the work easy and accurate. The range of the furnace temperature is wide, and the furnace can be widely used in colleges and universities, research institutes, industrial and mining enterprises.
The products we supply comply with the rules of related environmental protection laws, will make no pollution.
All in one word, with the high-technology and years of experiment, we can meet your special demand on the design or function of the furnace.

Specifications

Inside Chamber Size & material

Φ200x180 (or according to your requirement)

Standard Working Temperature

1600C

Maximum Temperature

1700C

Temperature Control

PID automatic control via SCR (Silicon Controlled Rectifier) power control, e.g. current limiting phase angle fired the resistor with 30 programmable segments.

Temperature Accuracy

+/- 1° C

Heating Element

MoSi2

Thermocouple

B Type  (Pt-Rh to Pt-Rh) with Alumina tube

Working Voltage

AC 208V-240V single phase, 50/60 Hz (100A air breaker is required)

Max. Power

6.5 KW

Warranty

One year limited warranty (Consumable parts such as processing tubes, o-rings and heating elements are not covered by the warranty)
