Ceramic Fiber Tube Type Chamber
Ceramic Fiber Products    View:271    date:2016/09/13    Back
 Product Applicaton

1. Ceramics sintering lining
2. Thermal insulation for petrochemical pipe
3 . Sintering insulation for semiconductor and nano material
4 . Sintering insulation for special materials, like carbon fiber, graphene etc.
5. Chamber for vacuum rotatory furnace
6 .  Lining for diffusion furnace and small igniter.

 Technical Data

Item

1500ºC Chamber

Voltage

AC 220V

Heating Element

Resistance Wire

SiC element

Max. Temperature( ºC)

1250

1350

Working Temperature( ºC)

1150

1250













Specification( mm)

Φ190/80×200()
AC220V  1.2KW



Φ160/60×150()
AC220V   1KW

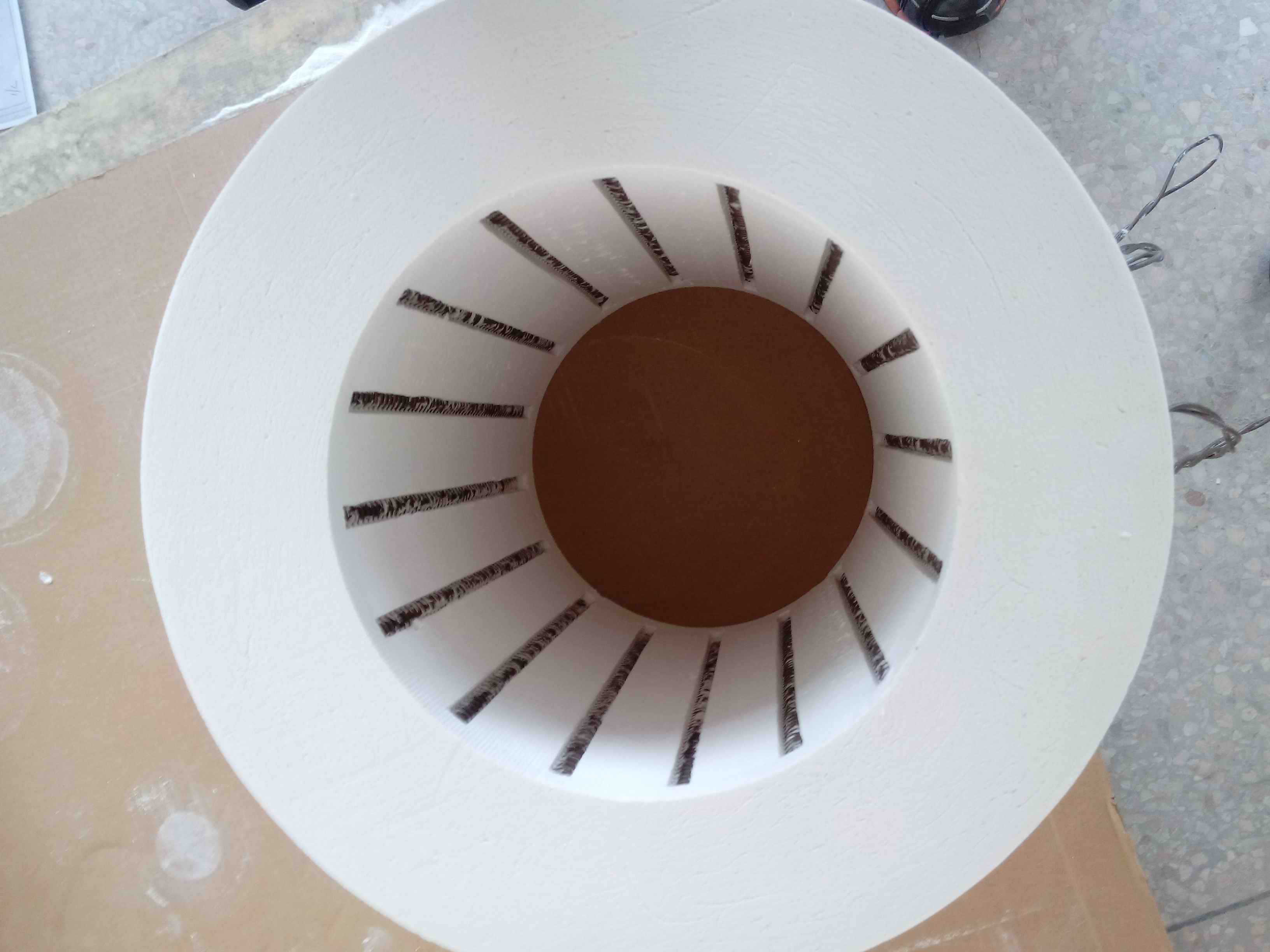

Complete circle













Custom Design

Φ240/120×205()
AC220V  1.6KW

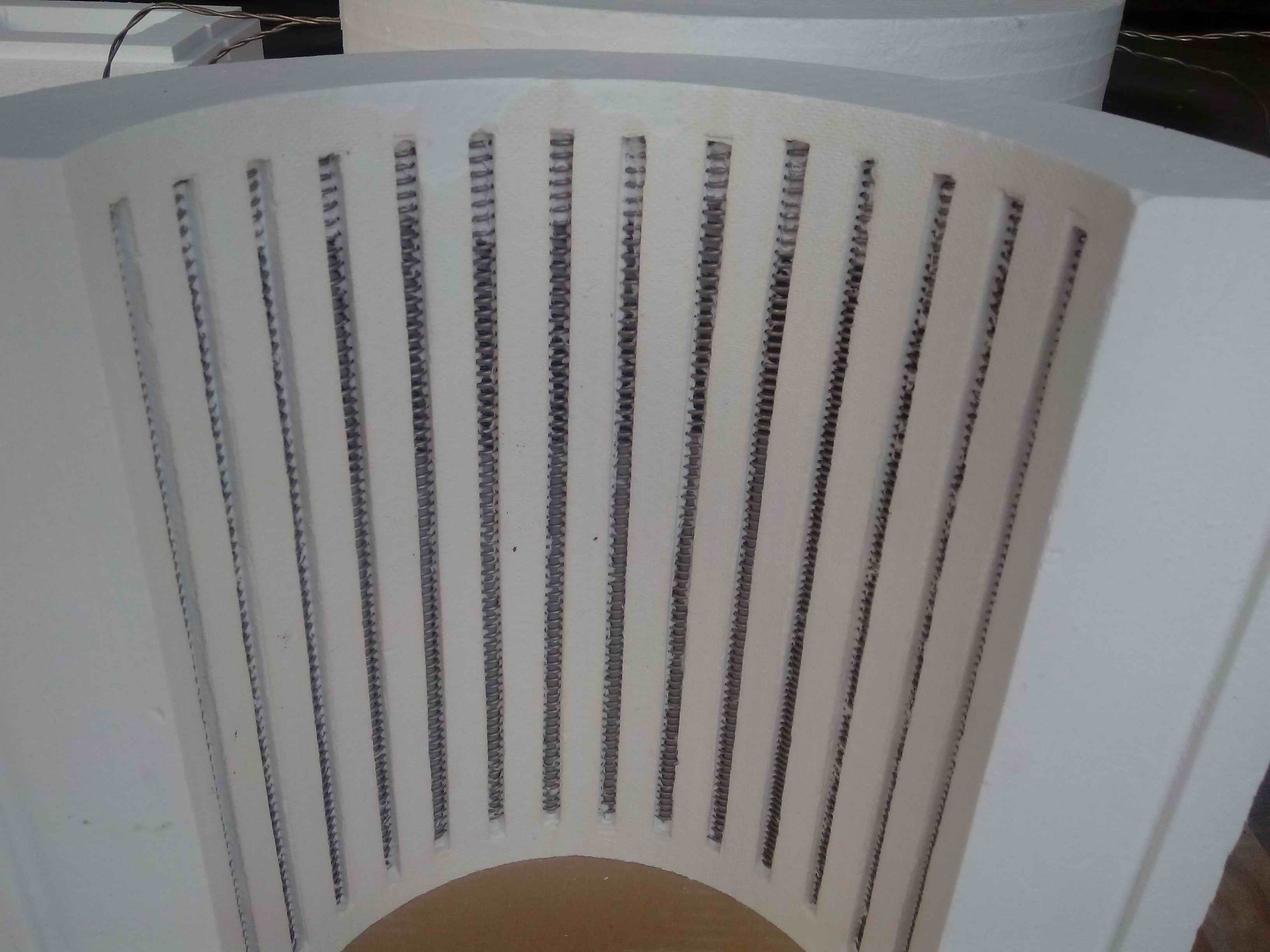

50% circle

Φ240/120×440()
AC220V  1.6KW







Φ360/240×260()
AC220V   4KW

Φ290/150×150()
AC220V  1.2KW

Φ290/150×300()
AC220V  2.4KW
