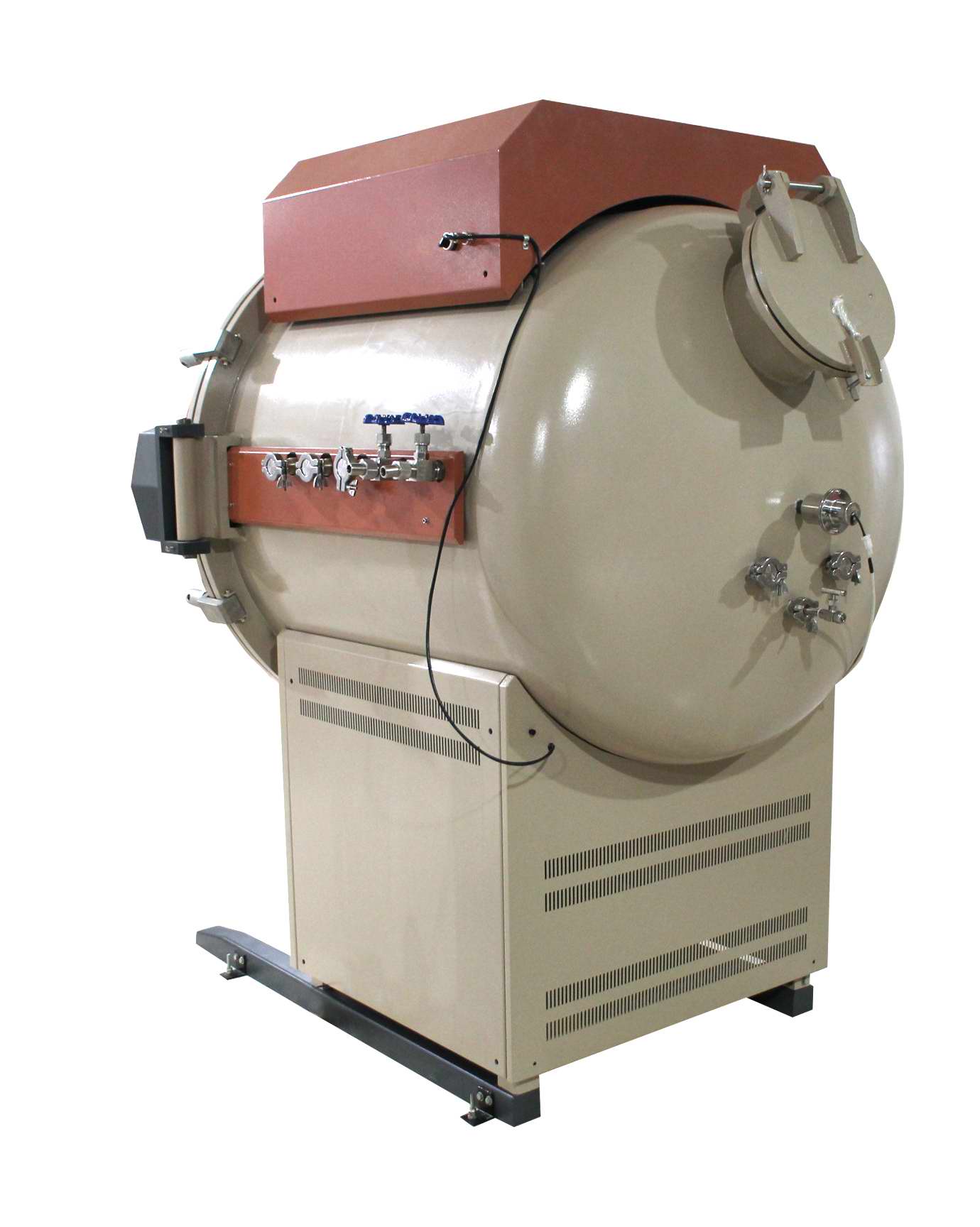

Vacuum Vertail All-in-One Furnace Jz-V1400X
Vacuum Furnaces    View:666    date:2016/09/12    Back

High Temperature Versatile Vacuum, Air & Inert Gas All-In-One Furnace.

JZ-V1400X facilitate operation of firing cycles where atmosphere condition can be altered during operation cycle, from oxidizing, (such as air to inert atmosphere), or argon/nitrogen to rough vacuum.
This type of furnace makes multi-atmosphere process in one cycle possible: binder burn out in air and parts sintering under vacuum or inert gas atmosphere.
These furnaces are designed for accurate air/inert gas flow rate control, accurate temperature control, excellent temperature uniformity, long lasting performance and safe operations.
It is ideal for laboratories and small scale production for temperatures up to 1450C





Specifications











Description

JZ-V1400X facilitate operation of firing cycles where atmosphere condition can be altered during operation cycle, from oxidizing, (such as air to inert atmosphere), or argon/nitrogen to rough vacuum.
This type of furnace makes multi-atmosphere process in one cycle possible: binder burn out in air and parts sintering under vacuum or inert gas atmosphere.
These furnaces are designed for accurate air/inert gas flow rate control, accurate temperature control, excellent temperature uniformity, long lasting performance and safe operations.
It is ideal for laboratories and small scale production for temperatures up to 1450 o C





Inside Chamber Size & material

4" x 4" x 5"

6" x 6" x 6"

8" x 8" x 8"

10" x 10" x 12"

12" x12" x 16"

18" x 18" x 18"

24" x 24" x 24"

Temperature in air and argon gas ( o C)

1350° C

Temperature in vacuum( o C)

1450° C



Temperature Control

PID automatic control via SCR (Silicon Controlled Rectifier)  power control, e. g. current limiting phase angle fired the resistor  with 30  programmable segments.

Temperature Accuracy

+/-  1° C

Thermocouple

S Type

Heating Element

U type SiC

Working Voltage

AC 208V-240V  single phase, 50/60 Hz (100A air breaker is required)

Max. Power

3kw-50kw



Warranty

One year limited warranty (Consumable parts such as processing tubes, o-rings and heating elements are not  covered  by the warranty)
