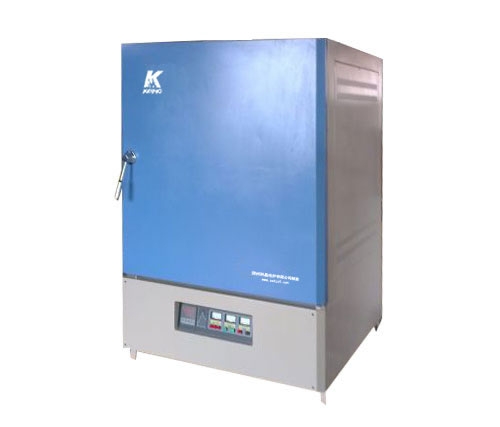

1200c Box Furnace with 5 Heating Surfaces
Box Furnaces    View:608    date:2016/09/09    Back
Double layer steel case with air cooling keeps exterior safe to touch.

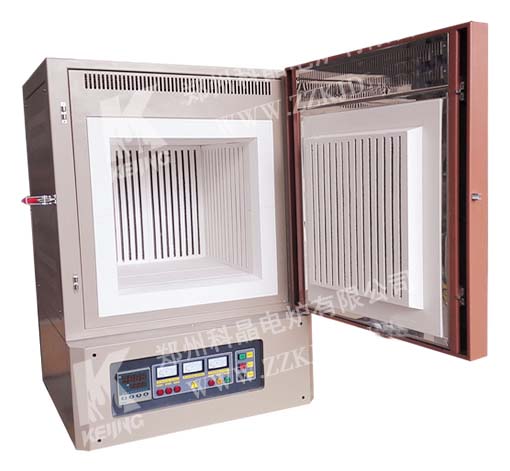

Heating elements are located on top, bottom and sides of chamber for enhanced temperature uniformity.
Fast heating rate up to 20°C/min.
Max.Working temperature:1000°C (Continuous) and 1100°C (Peak at < 60 minutes).
Digital temperature control with 30 segments programmable and automatic PID function and overheated alarm.
Power cord supplied without plug.

Specifications











Structure

Double layer steel case with air cooling keeps exterior safe to touch.
Heating elements are located on top, bottom and sides of chamber for enhanced temperature uniformity.
Fast heating rate up to 20°C/min.
Max.Working temperature:1000°C (Continuous) and 1100°C (Peak at < 60 minutes).
Digital temperature control with 30 segments programmable and automatic PID function and overheated alarm.
Power cord supplied without plug.

Amps

24A

Voltage

AC 208 - 240 Single phase, 50/50Hz

Watts

5000



Operating Temp Range C

100-1000°C  ( continuous )
1100°C  ( < 1 hour  Max.)
Note:For using =>1000°C,  furnace block must be placed front chamber, see picture left



Temperature controller

30 segments programmable
Automatic PID function
Overheated Protection.
+/- 1 ºC temperature accuracy



Gas Inlet/Outlet   (Optional)

Optional:
1/4'' Barbed gas inlet/outlet can be installed on back of furnace upon customer request.

Stability at 1000

+/-1oC

Uniformity at 1000

+/-3.45oC



Warranty &Certificate

One year limited warranty (Consumable parts such as processing tubes, o-rings and heating elements are not covered by the warranty
