Vertical Tube Furnace with Muti heating zone & SS Vacuum Flanges
Vertical Tube Furnaces    View:730    date:2016/09/08    Back

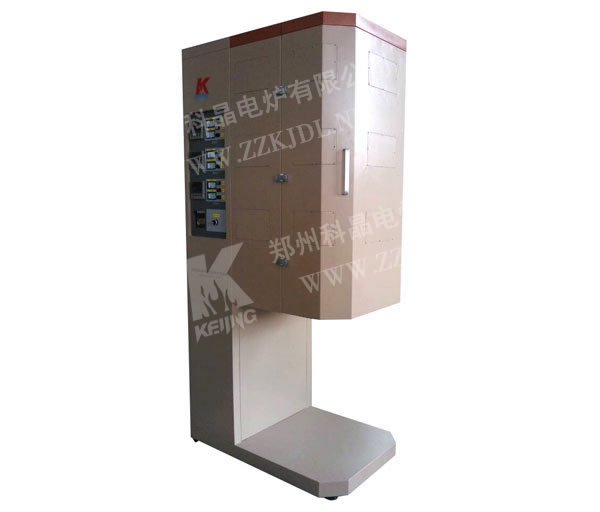

Vertical Tube Furnace with Muti heating zone & SS Vacuum Flanges

Vertical Tube Furnace with vacuum tube, which can achieve faster sample heating and quenching in vacuum or flowing gas. Precision temperature controller can provide 30 segments heating and cooling steps with +/- 1 ºC accuracy. It is idea furnace for making quenching test and temperature measurement

.



Specifications:

Furnace casing

N/A

Double layer steel structure with air cooling. Built in thermostat to control Cooling fans running when case temperature > 55ºC

Voltage

V

AC 208-240 Single Phase, 50/60 Hz

Max. Heating Rate

ºC /min

<= 20

Tube Size and Materials

mm

custom made

Temperature controller

PID automatic control via current limiting phase angle fired the resistor with 30 steps programmable

Temperature Accuracy

ºC

+/- 1

Vacuum Seal

Two stainless steel flanges with vacuum gauge and valves included
A hook ring is welded inside of top flange for hanging thermal block or crucible by wire
